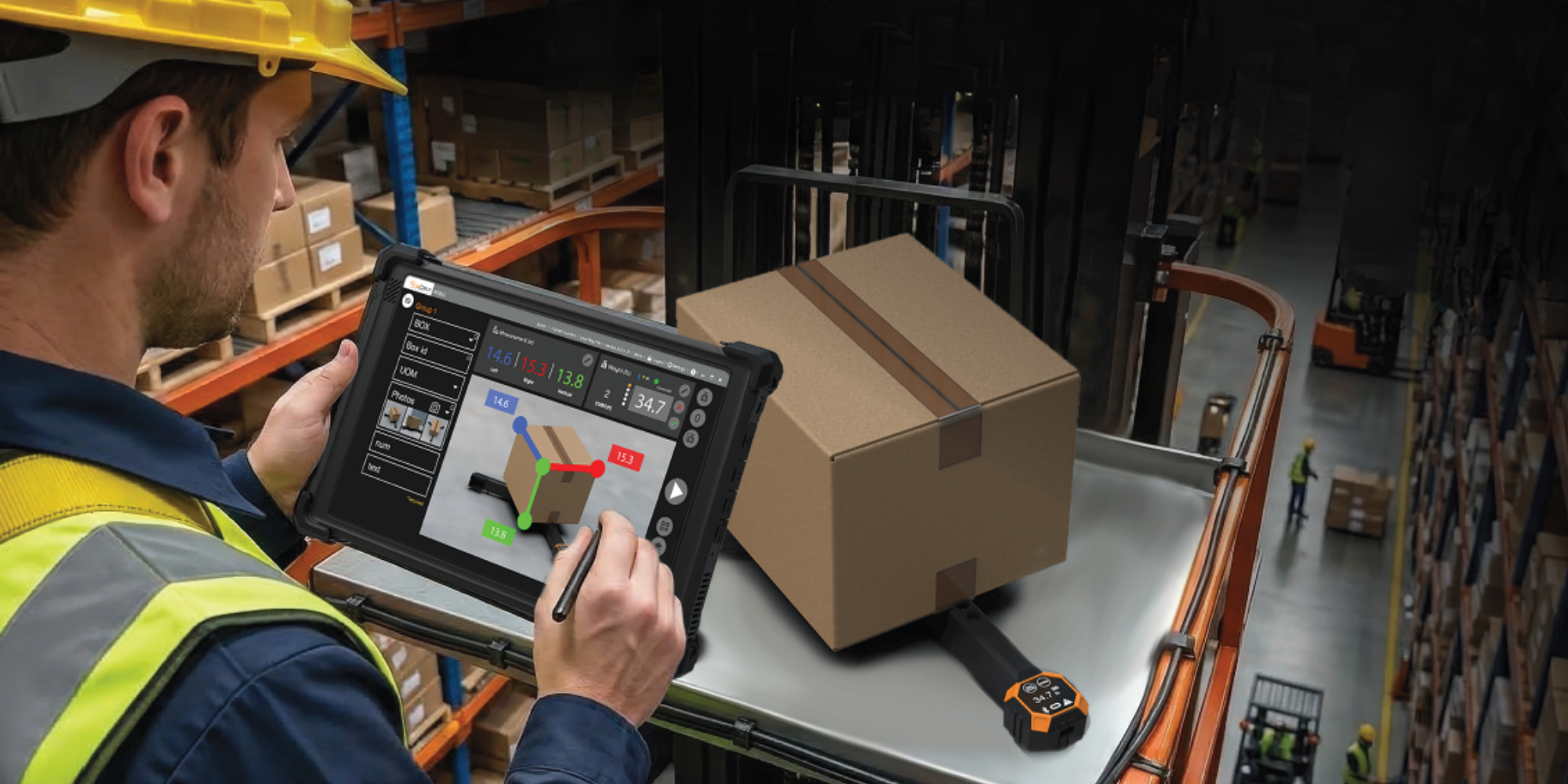

A worker scans items on a lift in a warehouse
  1. Home
  2. xDIM Mobile Dimensioning

xDIM Mobile Dimensioning Software

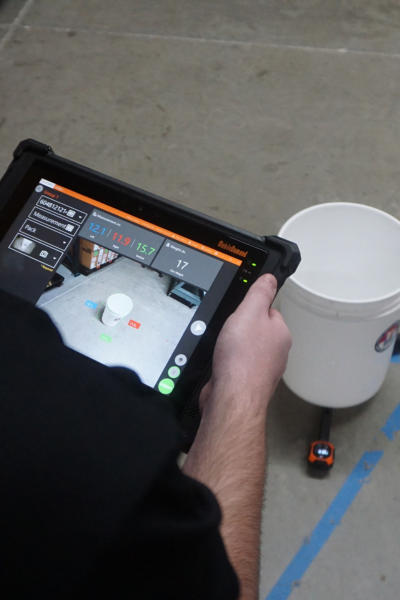

Person dimensioning bucket with xDIM Person dimensioning pallet with xDIM

xDIM Mobile

Modern, Mobile, Multi-Mode Dimensioning

Dimensioning anywhere.

xDIM is a modern dimensioning system that quickly and accurately captures dimensions of boxes, irregulars, small items and pallets anywhere.

This mobile solution enables an entirely new workflow with the ability to capture all necessary data including dimensions, weights and pictures at the product location—even at the upper levels of your shelving. No more bringing items to-and-from a stationary dimensioner.

MMH2407_BP_MobileDemand_Inline3_800px

Modern Materials Handling Article: Weighing in with Dimensioning Systems

President and CTO, Matt Miller, joins Modern Materials Handling's conversation on the latest dimensioning solutions for warehouse optimization.

Read Article

Mobile Dimensioning Benefits

Ditch the Fixed Dimensioner

xDIM goes where you go—whether you’re near the rafters or on the warehouse floor.

box and arrows icon

Increase Mobility & Agility

Measure items (lxwxh) where they are, no more moving to-and-from a stationary dimensioner. Capture all pertinent item data in a single application with a multi-functional rugged device.

growing bar chart icon

Improve Revenue & Cut Costs

Reduce shipping surcharges with reliable, accurate dimensional data. Retire costly, stationary single-mode dimensioners from your workflow. Delay capital expenditures for new facility space.

Cube and spacing icon

Optimize Space & Time

Enhance warehouse slotting and storage space utilization. Improve TI-HI pallet configuration with accurate dimensions.

Technology icon

Modernize Workflows

View data in real time and integrate with existing WMS or PIMS system. Segment and identify items quickly and accurately with Computer Vision, Artificial Intelligence and Machine Learning.

modex-blog-thumb

Seminar: The Future of Dimensioning is Here

View our presentation from MODEX 2024 to discover how AI-powered mobile dimensioning boosts operational productivity by enabling dimensioning anywhere.

View seminar

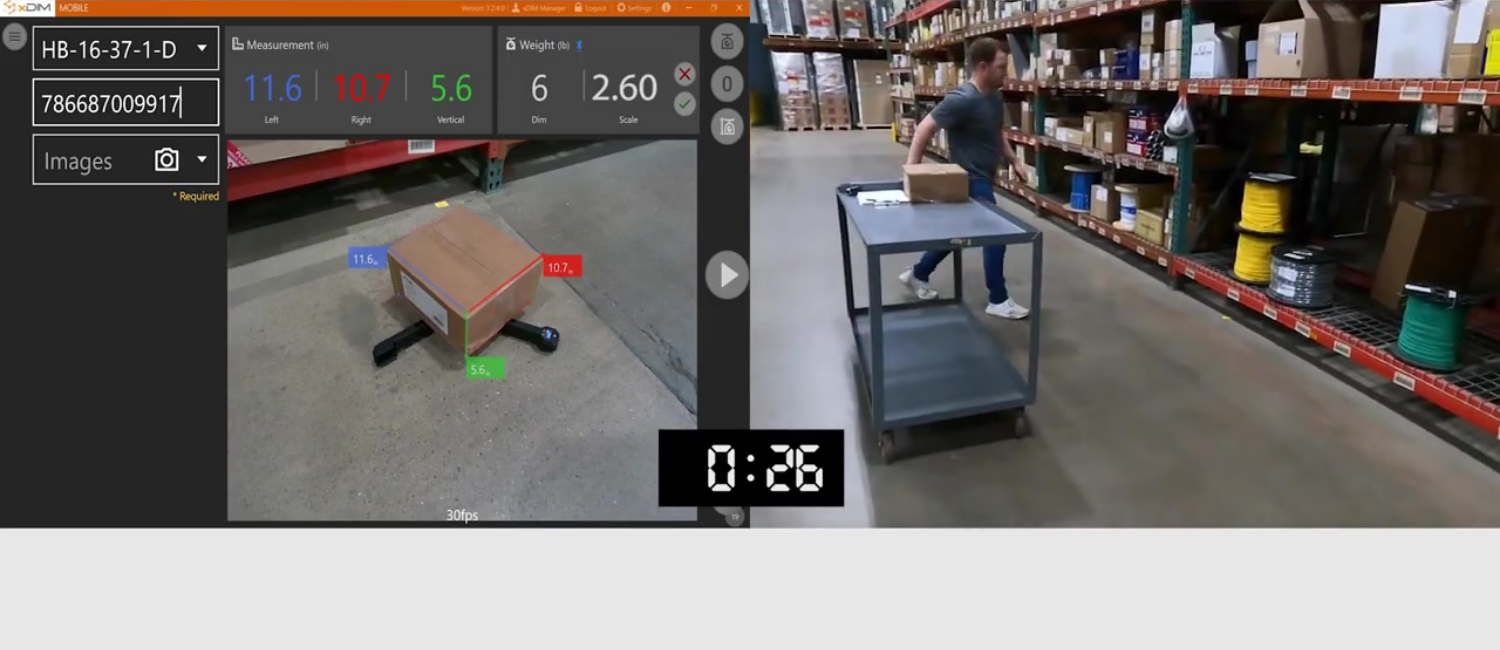

Comparison of xdim mobile dimensioning and stationary dimensioner

40% Faster Dimensioning

On average, xDIM outperforms stationary systems by nearly 40% in terms of time savings when capturing the weight and dimensions of 15 items.

Play Icon

Mobile Dimensioning Features

Customizable Data Capture Fields

Quickly collect accurate item master data in a single application with xDIM.

Multi-Mode

Seamlessly switch between five dimensioning methods.

Barcode Scanning

Scan item barcode with integrated or wearable scanner.

Actual Weight

Connect the xScale S200 via Bluetooth for mobile weighing.

DIM Weight

Pre-load carrier divisors for DIM weight calculation.

Text/Numerical Field

Enter specific product information.

Unit of Measurement

Choose between each, pack, or case.

Image Capture

Capture up to six images for chain of custody support.

Erase Background

Instantly remove image background for ecommerce and product catalogs.

xdim-1-1

eBook: xDIM Mobile Dimensioning vs Static Dimensioning Systems

The rapid growth of e-commerce and the increasing demand for efficient warehouse operations have underscored the need for accurate and speedy dimensioning solutions. This eBook compares the speed to dimension 15 SKUS using xDIM and a stationary dimensioner.

Download eBook

Common Applications

xDIM Use Cases

Warehouse Slotting

Organize storage space as efficiently as possible and delay facility expansion.

Outbound Shipping

Avoid surcharges and fees from inaccurate dimensions.

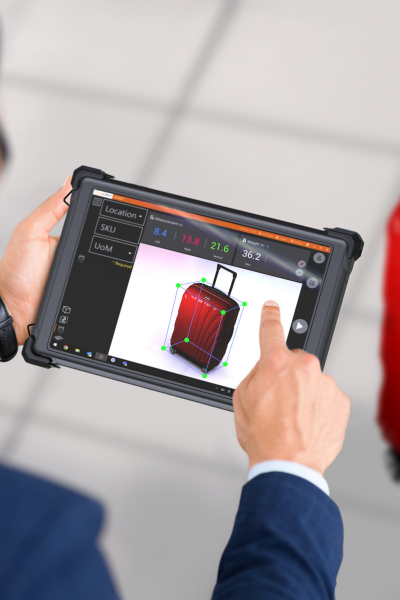

Airline Baggage

Verify carry-on and checked bag dimensions size.

Airline Cargo

Verify supplied cargo dimensions size. Capture images for chain of custody support.


Reverse Logistics

Capture dimensions when receiving incoming returns to replace packaging for resale.

Parcel Pickup

Confirm dimensions at parcel pickup to charge accurate postage, express, or freight fees.

Inventory Audits

Validate incoming and existing item dimensions.

xdim-apples xdim-airline
Untitled design (2)-1

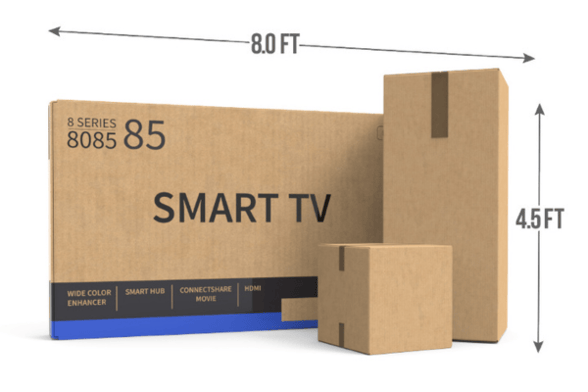

Boxes

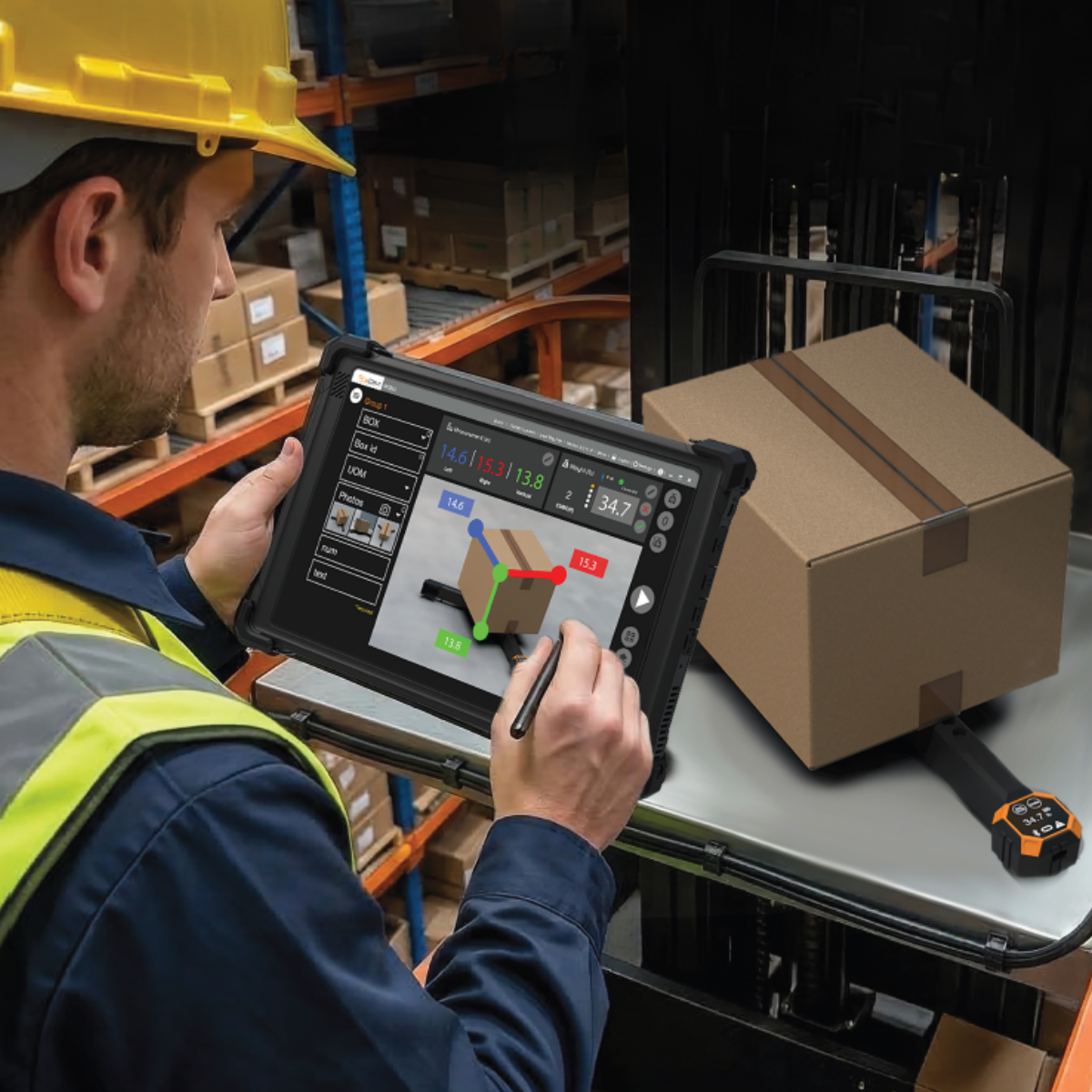

The original xDIM captures small to medium sized box dimensions in under a second by aiming a rugged tablet at the corner of a box. For larger boxes like TVs, furniture and appliances, use the 2-step method.

Measurement capacity: 3-inches to 48-inches (4-feet) NTEP Certified, Legal for Trade.

Large boxes: 48-inches (4 feet) to 96-inches (8 feet)

xdim-pallete

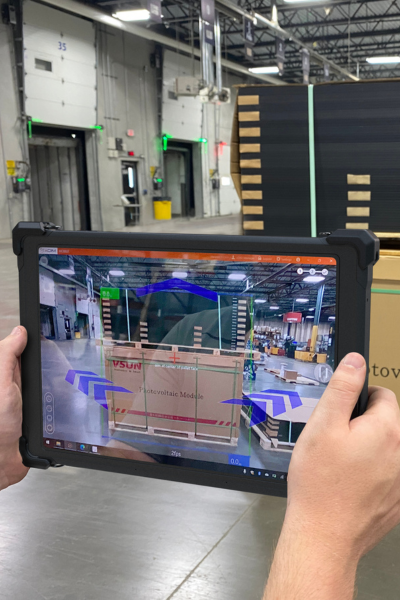

Pallets

xDIM for pallets uses an AI-powered two-step method, by aiming a rugged tablet at the front, then side of the pallet. Ideal for storage optimization, the software can capture cleanly stacked, square payload pallets as well as non-square payloads, such as barrels or stacks of piping.

Measurement capacity: Up to 96-inches (8 feet)



Untitled design

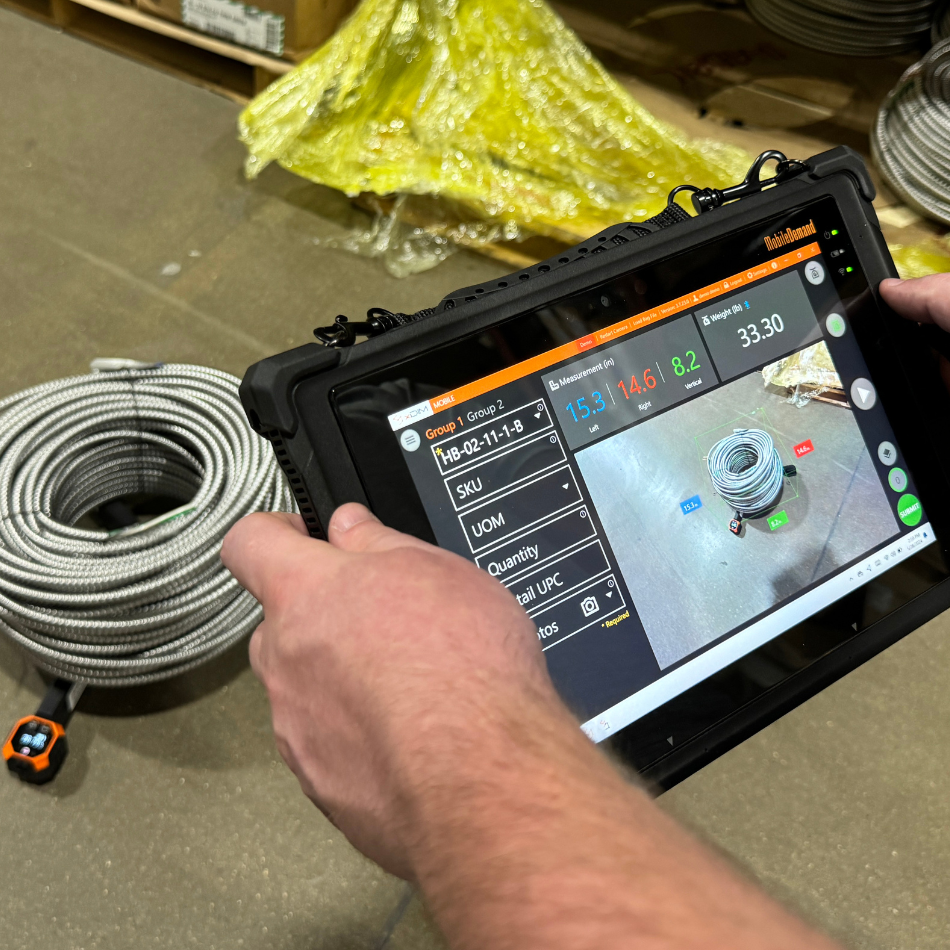

Irregulars

xDIM for irregular items can dimension objects of any shape using a bounding box. The software can group multiple items into a single bounding box for added convenience. Ideal for capturing dimensions of eaches, inner packs, and case packs as well as poly-mailers and padded envelopes.

Measurement capacity: 2-inches to 48-inches (4 feet)



Untitled design (1)

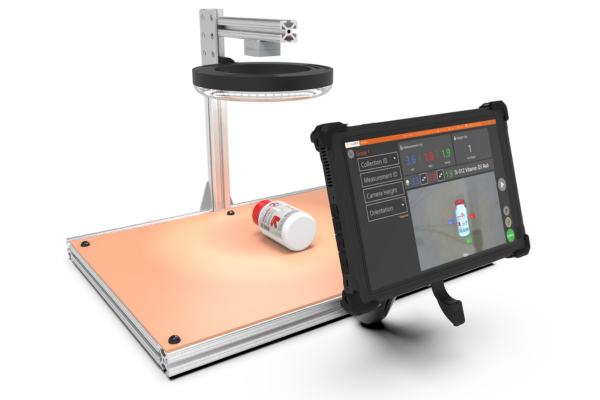

Small Items

Small items such as pill bottles, gum, candy and even nuts and bolts can be dimensioned using the xDIM booth. The lightweight, aluminum frame, ring light and 3D camera combine with a mounted rugged tablet for instant dimension capture. Place the booth on a cart for full mobility throughout the facility.

Measurement capacity: 0.4-inches to 6-inches (1-2mm accuracy)



Untitled design (46)

FAQs

Commonly Asked Questions

What types of items can be dimensioned by xDIM?

xDIM can dimension standard and oversized boxes, irregular items, small items and pallets.

What size objects can be dimensioned?

xDIM can capture dimensions of items as small as 0.4-inches up to 8-feet.

What hardware is compatible with xDIM?

xDIM is compatible with the MobileDemand rugged xTablet T1175 integrated with an Intel® RealSense™ Depth Camera. Additional add-ons include integrated or wearable barcode scanners, portable scales and mounting equipment.

Can the divisor be changed in the DIM weight calculation?

Yes, custom divisors for specific parcel carriers can be pre-loaded into the xDIM software.

Does xDIM use metric or imperial units?

Both - easily switch between metric or imperial data output.

Is xDIM Legal for Trade Certified?

Yes, xDIM for Standard Boxes is NTEP Certified as Legal for Trade within a half-inch (0.5-inch) accuracy. Certificate Number: 21-041.

How can I test xDIM in my own operations?

Contact our sales team to schedule a demo call.

xDIM-Scale-Banner

xDIM Added Value

Mobile Weighing with the xScale S200

The mobile and convenient smart scale solution for the modern warehouse.

Capture item weight anywhere with the Bluetooth® smart xScale S200. The lightweight, compact form, designed for personal portability, opens to an innovative Y-shape on which items are placed for weighing.  The wireless, battery powered smart device quickly sends captured data directly to your phone or tablet via highspeed Bluetooth® Low Energy 5.1

xScale S200
the xScale

Mobile Weighing

xScale S200

Capture weight quickly and easily wherever the job requires it with the portable xScale S200. Its lightweight folding arms and thin profile make it easy to use wherever items need to be weighed. The xScale S200 is fully compatible with xDIM.
